High Silica Fiberglass Cloth

High Silica Fiberglass Cloth is woven by 96% pure SiO2 silica fiber yarns, which is a kind of high temperature resistance and inorganic fiber.

High Silica Fiberglass Cloth

High Silica Fiberglass Cloth is woven by 96% pure SiO2 silica fiber yarns, which is a kind of high temperature resistance and inorganic fiber.
SiO2 Content ≧96%
Weave Plain, Satin
Loss on Ignition ≦3%
Thickness (mm) 0.1-1.5
Width (mm) 820, 920, 1000, 1500
Area Weight (g/m2) 300, 600, 1100
Shape Round, Square
Continuous Working Temp 1100°C/2012°F
Short Time Working Temp 1400°C
Instant Working Temp 1650°C/3002°F

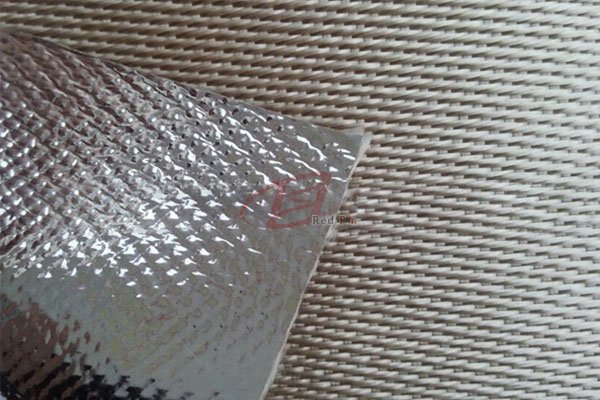

Polyurethane (PU) coated, Vermiculite Coated and Aluminized Silica Fiberglass Cloths are still available to enhance the abrasion resistance and tensile strength of the fabrics.

Product Benefits:
1. Good chemical stability
2. Good insulating property
3. Good high-temperature resistance, acid resistance and erode resistance
4. Low shrinkage and thermal conductivity
5. Low Smoke Emission

Application:
It is widely used to produce welding blankets, curtains, pads, jackets or covers, and applied for furnace insulation, heat barrier for turbine, engine exhausting and noise barrier, high temperature expansion joints or compensators for flange joints, heat preservation of steam valve, thermal insulation and protection in metal processing, shipbuilding and heavy-duty machinery industry, nuclear equipment and electrical cable, and thermal ablation material for aerospace.
